Model |
FIN5H14 |
Refrigerant |
R134a |
Num.of Cylinder |
5 |
Bore |
35mm |
Dislacemet |
138cm3/r |
Max.continuous spdde |
6000 |
Lubricating Oil |
PAG |
Weight |
|
DD.V Rated Voltage |
12/24 |
|
|
Pulley |
Fitted according to requirements of users |
|

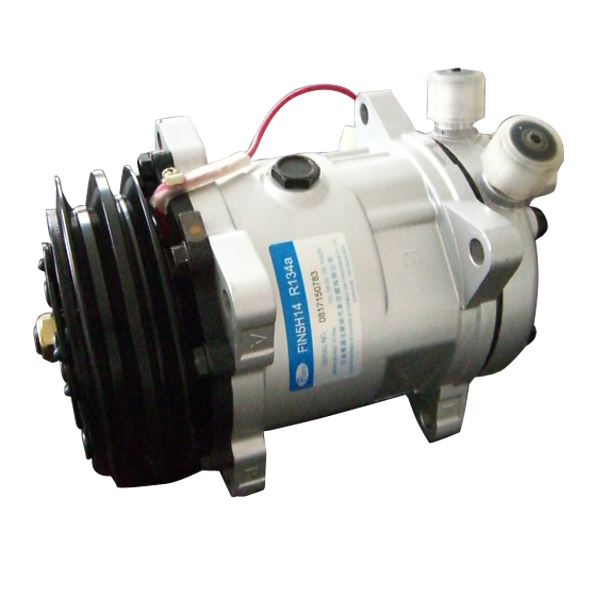

FIN5H14 |
|

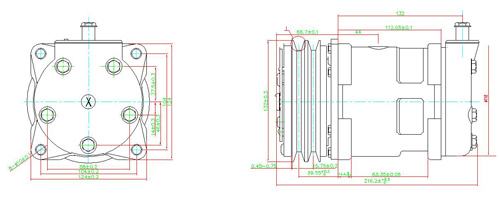

Drawings |
|
|
|
Model |
FIN5H09 |
Refrigerant |
R134a |
Num.of Cylinder |
5 |
Bore |
35mm |
Dislacemet |
87cm3/r |
Max.continuous spdde |
6000 |
Lubricating Oil |
PAG |
Weight |
|
DD.V Rated Voltage |
12/24 |
|
|
Pulley |
Fitted according to requirements of users |
|

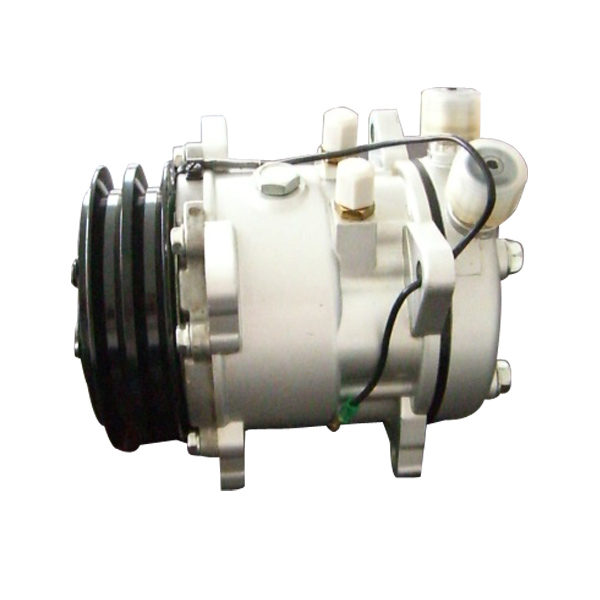

FIN5H09 |
|
|
|
Model |
FIN5H11 |
Refrigerant |
R134a |
Num.of Cylinder |
5 |
Bore |
35mm |
Dislacemet |
108cm3/r |
Max.continuous spdde |
6000 |
Lubricating Oil |
PAG |
Weight |
|
DD.V Rated Voltage |
12/24 |
|
|
Pulley |
Fitted according to requirements of users |
|

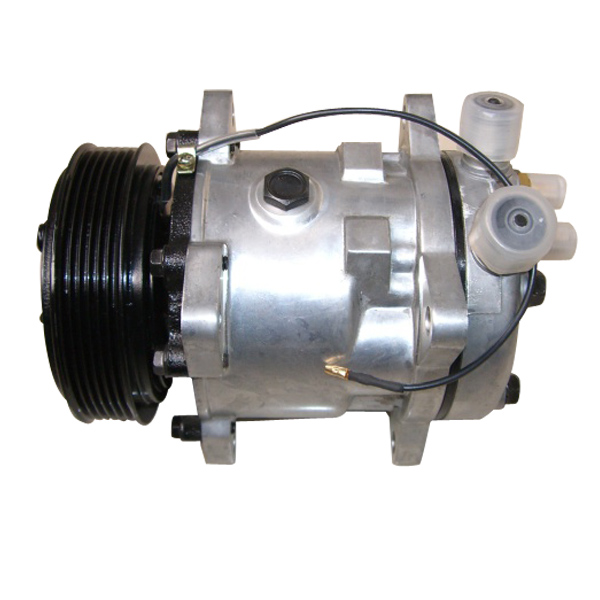

FIN5H11 |
|
|
|
Model |
FIN5H16 |
Refrigerant |
R134a |
Num.of Cylinder |
5 |
Bore |
36mm |
Dislacemet |
161cm3/r |
Max.continuous spdde |
7000 |
Lubricating Oil |
PAG |
Weight |
|
DD.V Rated Voltage |
12/24 |
|
|
Pulley |
Fitted according to requirements of users |
|

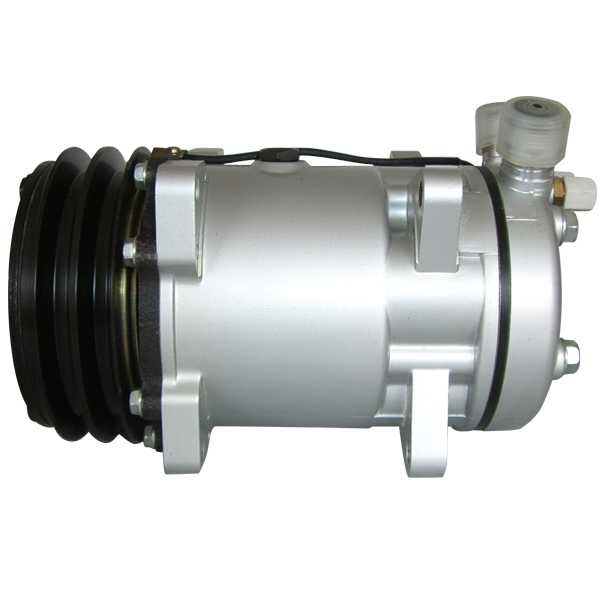

FIN5H16 |
|
|
|
|
|
